PRODUCT SUMMARY
Faster Speeds and Longer insert life in a variety of materials
Single point Revoturn tools with the rotating insert have been demonstrated in a variety of turning applications including High Nickel Content Aerospace Materials and High Speed Steel. RTC’s Technical Staff will be pleased to discuss your unique application requirements
This video illustrates Turning SinterCast CGI with a rotating ceramic insert. The metal removal rate is 45 inches per minute

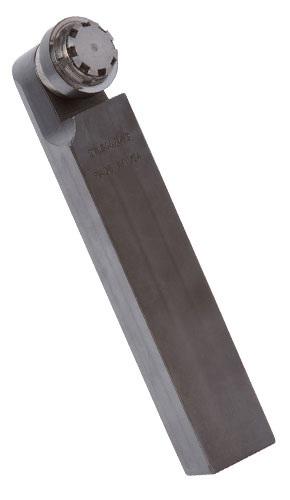

Revoturn
Parameters shown in the Revoturn video
| Metric | Standard (inch) | |
| Depth of Cut | 2.5mm | .100″ |
| Feed per Revolution | .5mm/rev | .020″/rev |
| Part Diameter | 142 mm OD | 5.600″ OD |
| RPM | 1330 RPM | 1330 RPM |
| Surface Feed | 592 M/min | 1946 SFM |
| Feed Rate | 675 mm/min | 26.6 IPM |
| Metal Removal Rate | 738 cubic cm per minute | 45 cubic inches per minute |
Turning Inconel with Revoturn Turning Tools
| Parameters and Results: | |
| Machine: | 30 hp lathe |
| Tool: | Revoturn Right Hand 1″ Shank TurningTool |
| Insert: | Z22 Alcrona Coated Carbide with .0015” hone |
| Material: | Inconel 718 – Size 9” diameter; 36” long |
| Chuck: | Three (3) Jaw |
| Coolant: | Flood coolant |
| Parameters: | Vc=98 SFM DOC=.040″ inches per rev=012″/rev Length of Cut= 17.5″ |
| Results: | 7 cuts at 5 min. per cut = 35 minutes of tool life |
